EPC-2374

Setpoint & Output Configuration Screenshots

The EPC-2374 is configured using a terminal emulation program. The screenshots below are examples of the Set-Point Manager and the Output Manager.

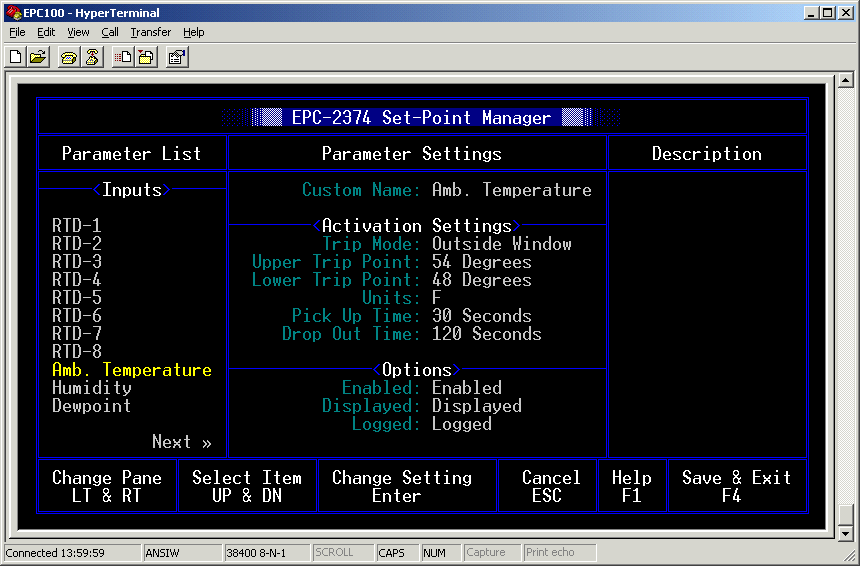

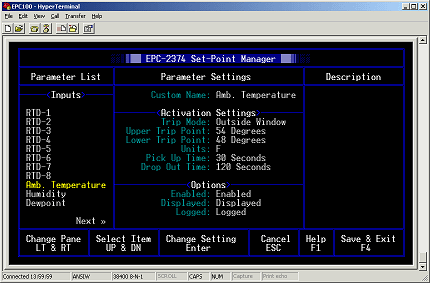

Set-Point Manager: Used to create custom trip points, hysteresis times and options.

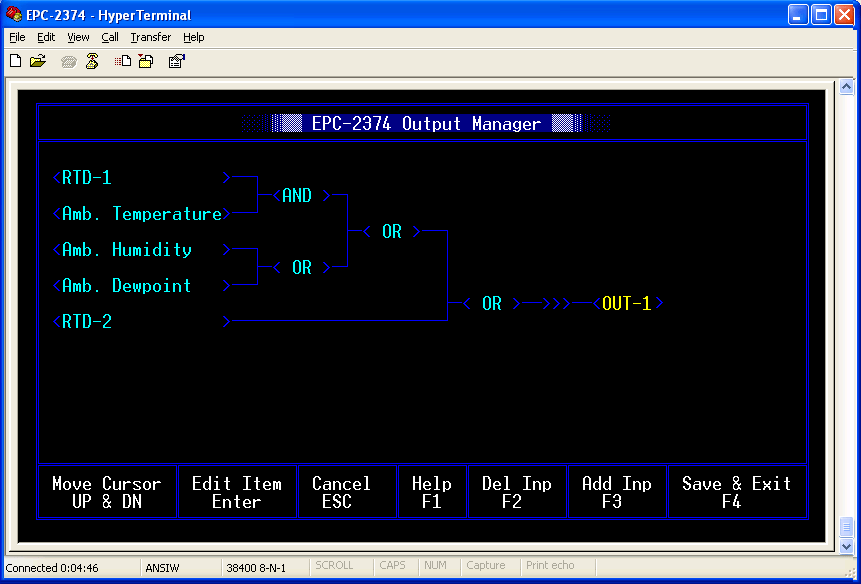

Output Manager: Links set-points to physical contact outputs. Allows for logic settings.

Set-Point Manager:

Note: In the screenshot example for the setpoint manager, the ambient temperature is configured for a window of range mode. Note the upper and lower thresholds. In this example the unit will trip if the temperature falls to 48 degrees Fahrenheit. The unit will also trip if the temperature rises over 58 degrees. This is one "set-point" which can be added to your logic or or directly to an output.

Output Manager:

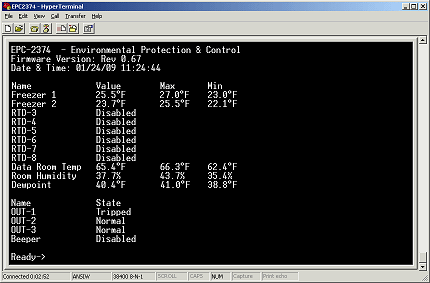

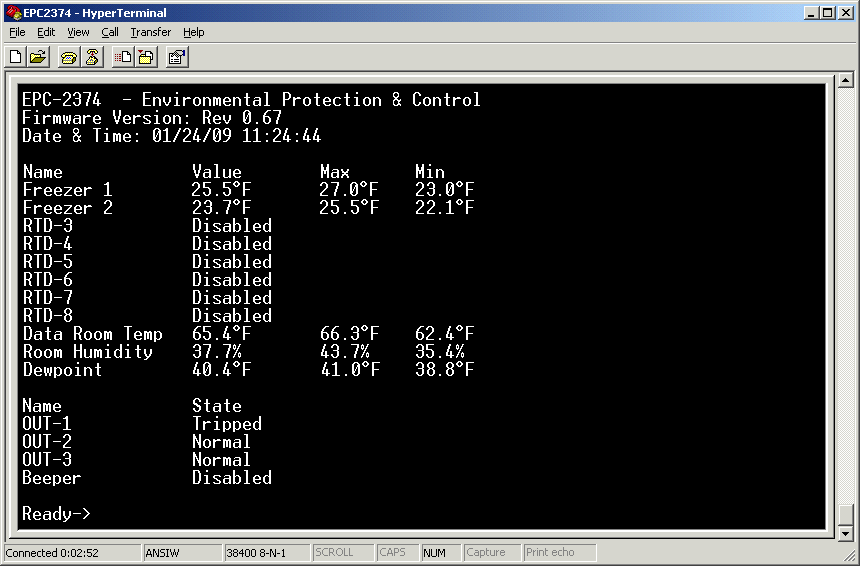

Status Screen:

Test drive the user interface with our online demo. Contact Us for connection instructions emailed to you.

Typical Example of the EPC-2374 Logic Engine. Build your own Logic:
